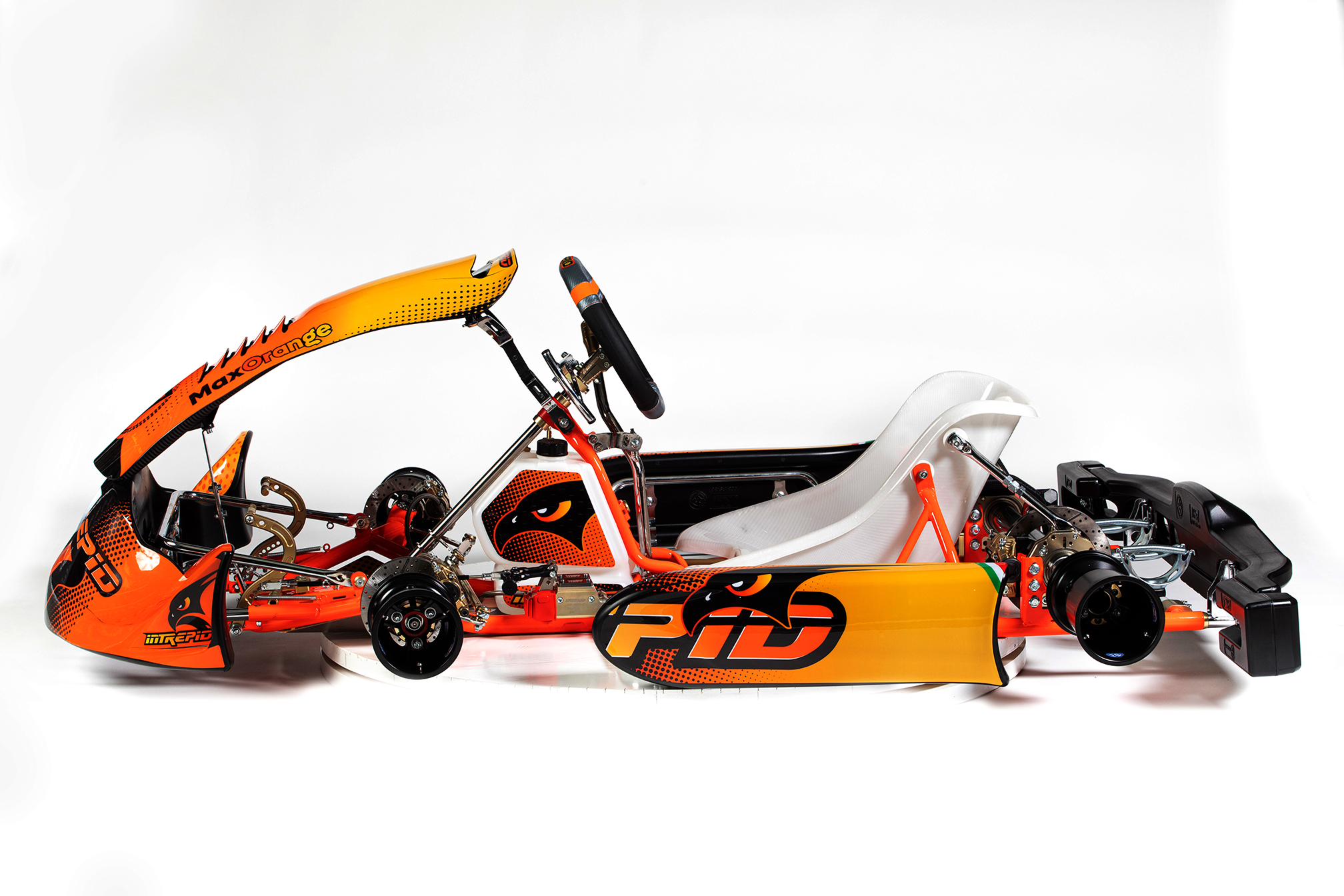

DD2 CHASSIS mod.CRUISER MS3 tubes Ø30mm wheelbase 1048mm
INT0101042
CHASSIS DESCRIPTION:
The CRUISER MS3 chassis, is the most consolidated INTREPID model, thanks to the frame composed of Ø30 tubes, it is suitable for medium tyres tracks. It guarantees excellent performance with medium/soft tyres. The frame structure was designed to specifications to accommodate the Rotax DD2 engine and features a single bearing support on the left side.
Suitable for the categories ROTAX DD2.
DOWNLOAD TECHNICAL SHEET
FRAME DESCRIPTION:
NOUSE: chromium molybdenum tube Ø30mm
SIDE: chromium molybdenum tube Ø30mm
CENTRAL CROSS PIECES: chromium molybdenum tube Ø30mm
REAR CROSS PIECES: chromium molybdenum tube Ø30mm
WHEELBASE: 1048mm.
STANDARD CONFIGURATION:
- BODYWORKS mod.507/508 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.507/508
- REAR BRAKE SYSTEM mod.R6K CIK/FIA 015-B2-06
- FRONT BRAKE SYSTEM mod. R6KZ CIK/FIA 015-B4-20
- AXLE Ø40x1040mm - mod.T2 - MEDIUM
- REAR HUB Ø40x120mm - CH.mm - ALUMINIUM
- FRONT HUB mod.KZ Ø42X80mm - ALUMINIUM
- FRONT HUBS DISK SUPPORT
- MAGNESIUM WHEEL RIMS L. 132/212 WITH HOLES - BLACK
- FLOOR PLATE mod.KZ with STICKERS INTREPID
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- STEERING COLUMN - 490x28mm
- SPEENDLES Ø25mm 10,25° mod.H1K KZ
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- PEDAL CHROME PLATED STEEL
- HIGH QUALITY ALUMINUM COMPONENTS
